How Much Horsepower Can a G56 Transmission Handle?

One of the most common questions in the diesel world is how much horsepower a G56 transmission can actually handle.

The G56 has become one of the most popular manual transmissions in the Cummins community. Whether someone is building a high horsepower street truck, tow rig, or manual swap, the G56 is usually one of the first transmissions people talk about.

A properly built stock-style G56 is generally reliable around the 750 horsepower range. That does not mean the transmission is weak. In reality, 750 horsepower is an enormous amount of power for a synchronized manual transmission in a heavy diesel truck.

The key is understanding where the actual limitations are.

What Is the Weak Point of the G56?

The primary weak point of the G56 is the front transmission case.

The G56 uses a one-piece front case and bellhousing design. The front section of the case is aluminum, and under very high torque loads, the case itself can begin to flex and stretch slightly over time.

There is nothing inherently wrong with aluminum transmission cases. Many excellent transmissions use aluminum successfully. The issue is simply that once power, traction, and shock loading increase far enough, the forces inside the transmission become extreme.

The helical gear design inside the G56 constantly creates thrust loading under power. As torque is applied through the transmission, the internal geartrain is continuously trying to push and spread the case apart.

Over time, especially in high horsepower or aggressive towing applications, this can begin affecting internal clearances, bearing alignment, and gear mesh patterns.

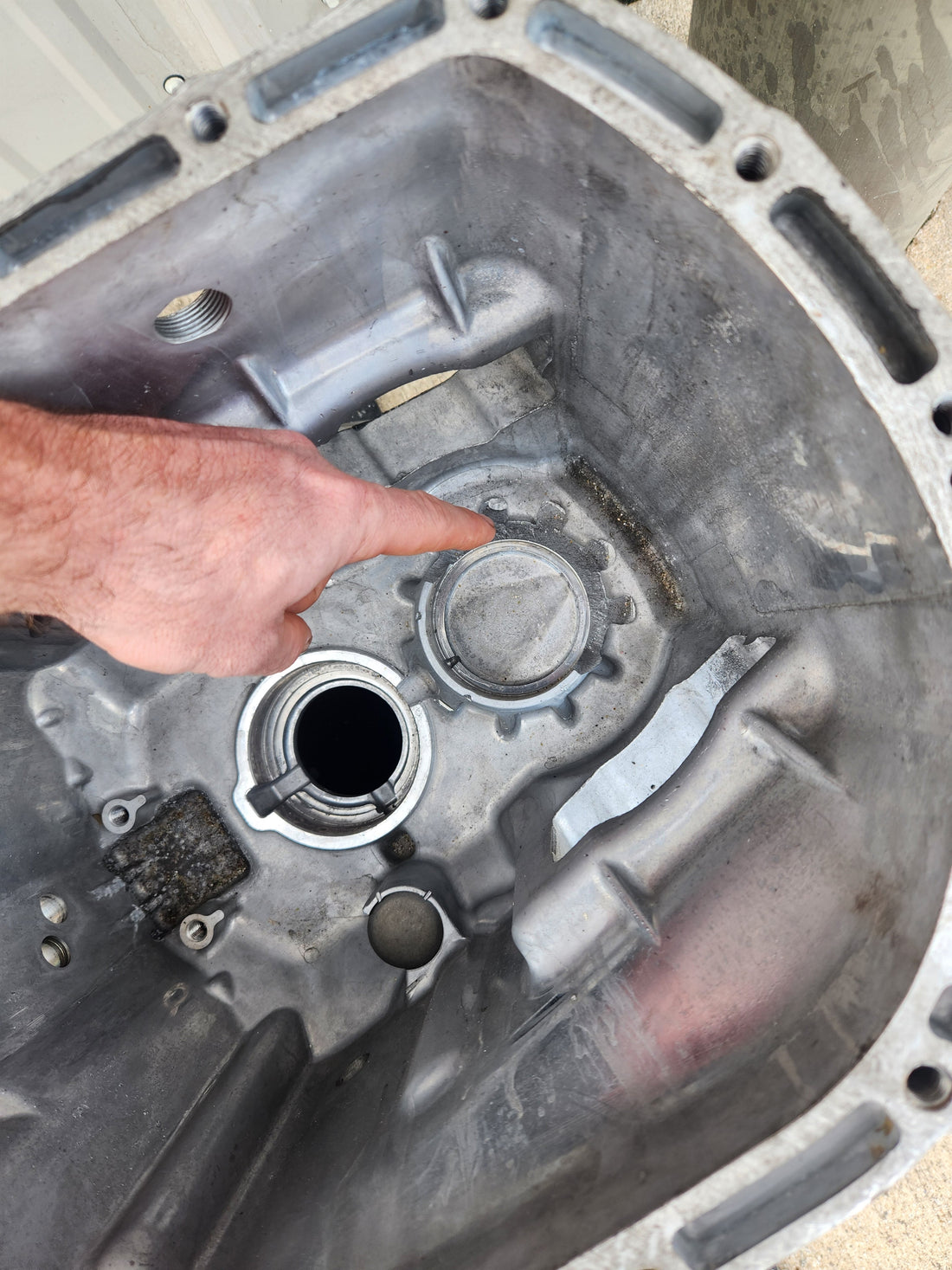

One of the most common case-related failures on the G56 involves the countershaft bearing pocket in the front case itself.

The front case contains a pocket that supports the outer race of the countershaft bearing. Under repeated thrust loading and case flex, this area can eventually crack or break out entirely.

This is not strictly a high horsepower problem either. We regularly see completely stock G56 transmissions with failed countershaft bearing pockets. However, as horsepower, traction, towing load, and clutch shock increase, this failure becomes much more common.

In many cases, the rest of the transmission may still be in perfectly usable condition, but once the bearing pocket breaks out of the front case, the case itself is no longer usable.

Once the case starts moving around, everything inside the transmission starts becoming less happy.

What Upgrades Help a G56 Handle More Power?

The number one upgrade for the G56 is the transmission case itself.

One of the most popular upgrades is the heavy-duty upgraded aluminum case. These cases use significantly more material throughout the casting and are much more resistant to flexing, stretching, and countershaft bearing pocket failures under heavy load.

We are big fans of the upgraded aluminum cases because they dramatically improve durability while still keeping the transmission relatively lightweight.

For customers wanting the ultimate solution, there is now a newly released cast iron G56 case.

The cast iron case is essentially the end-all-be-all option for the G56 platform. In this application, the cast iron case is so strong that virtually everything else inside the transmission would fail before the case itself becomes the problem.

Another major advantage is that the cast iron version uses a removable bellhousing design.

That opens the door for future adaptability to other engine platforms. As development continues, we expect to see additional bellhousing options potentially allowing the same transmission platform to be adapted to applications like Duramax and Powerstroke trucks.

RoadRunner Transmission was one of the first shops to begin building and testing transmissions using the new cast iron platform.

What About the Common 6th Gear Problems?

One of the most misunderstood failures on the G56 is the common 6th gear issue.

Most people automatically assume 6th gear failures are purely horsepower related, but that is not really the case.

6th gear is an overdrive gear. It is intended primarily for cruising, not repeated shock loading or heavy pulling under extreme load.

The biggest issue with 6th gear is lubrication sensitivity.

Compared to the lower gears, 6th gear becomes much more vulnerable when fluid quality breaks down or temperatures rise excessively during sustained towing or heavy load conditions.

Once heat increases enough, lubrication quality suffers and the gear becomes more vulnerable to damage over time.

What Actually Breaks Gears in a Manual Transmission?

One of the biggest misconceptions in the transmission world is that horsepower alone destroys gears.

In reality, clutch shock is usually the real killer.

A truck with moderate horsepower and an extremely aggressive clutch can destroy gears very quickly. Meanwhile, another truck making dramatically more power may survive perfectly fine because the clutch setup cushions the shock loading instead of transferring it instantly into the transmission.

The faster the clutch synchronizes engine speed to the transmission under load, the more violent the shock loading becomes.

In many ways, this creates what could almost be described as simulated power — a brief spike in force that far exceeds the engine’s actual steady-state torque output.

Why Do Gears Fail Under Shock Loading?

Inside many transmissions, certain gears are fixed directly to shafts while others ride on bearings.

The gears that ride on bearings have more ability to flex slightly under sudden shock loading because their centers are unsupported compared to gears that are fully integrated into the shaft itself.

Under aggressive clutch shock, the unsupported gear can begin trying to distort slightly under load.

Once the gear tooth contact pattern becomes disrupted, even slightly, the failure process starts accelerating rapidly.

All it takes is a small failure point or damaged tooth to begin a chain reaction that spreads through the rest of the gearset.

How Does RoadRunner Transmission Improve Gear Strength?

At RoadRunner Transmission, we use a proprietary gear treatment process designed around improving durability under shock loading conditions.

Our process changes the hardening specification of the gears to better resist distortion and failure under extreme load conditions.

The goal is not simply surface hardness. The goal is improving the gear’s resistance to flexing and distortion during shock loading events.

That added stability helps maintain proper gear mesh patterns under load and reduces the likelihood of catastrophic tooth failure.

Where Can You Get a G56 Transmission Rebuilt Near Houston?

At RoadRunner Transmission, we specialize in G56 transmission overhauls and upgrades for customers throughout Houston, Conroe, Willis, Huntsville, Montgomery, and surrounding areas.

Whether you need a stock rebuild, upgraded case, towing build, or high horsepower setup, proper internal setup and component selection make all the difference in long-term reliability.
